LumberCon Products & Details
5/4" LUMBERCON PLANKS
| Part Number | Nominal Size | Texture | Actual Size | Weight Per LF | Usage |
|---|---|---|---|---|---|
|
LCP18WG |
5/4"x8"x12' |
Woodgrain |
5/4"x7.75"x12' |
7.875 | Plank Only |
|
LC112WG |
5/4"X12"X12' |
Woodgrain |
5/4"X11.75"X12' |
13 | Plank Only |
2" LUMBERCON JOISTS AND PLANKS
| Part Number | Nominal Size | Texture | Actual Size | Weight Per LF | Usage |
|---|---|---|---|---|---|
| LCP2812-WG,SB,SM | 2"x8"x 12' | Woodgrain / Sandblasted | 1.75"x7.75"x 12' | 11.5 LBS | Joist / Plank |
| LCP21212-WG,SB,SM | 2"x12"x 12' | Woodgrain / Sandblasted | 1.75"x11.75"x 12' | 17.7 LBS | Joist / Plank |
3" LUMBERCON PLANK AND BEAM
| Part Number | Nominal Size | Texture | Actual Size | Weight Per LF | Usage |
|---|---|---|---|---|---|
| LCP31212-SB,SM | 3"x 12"x 12' | Smooth / Sandblasted | 3"x11.75"x 12' | 25 LBS | Joist / Plank |
4" LUMBERCON CURB PLANK AND BEAM
| Part Number | Nominal Size | Texture | Actual Size | Weight Per LF | Usage |
|---|---|---|---|---|---|
| LCP4812-SB,SM | 4"x8"x12' | Smooth / Sandblasted | 4"x7.75"x12' | 24.5 | Joist / Plank |
Plank Span Comparisons
2" AND 3" PLANK SPAN COMPARISON - LUMBERCON TO WOOD
| Plank Size | LumberCon 50LB/SF | Pine 50LB/SF | LumberCon 100LB/SF | Pine 100LB/SF |
|---|---|---|---|---|
| Span | Span | Span | Span | |
| 2"x8" | 72" | 24" | 60" | 16" |
| 2"x12" | 72" | 24" | 60" | 16" |
| 3"x12" | 204" | 72" | 162" | 60" |
* A 50LB/SF load is recommended for residential construction and a 100LB/SF is recommended for commercial construction.

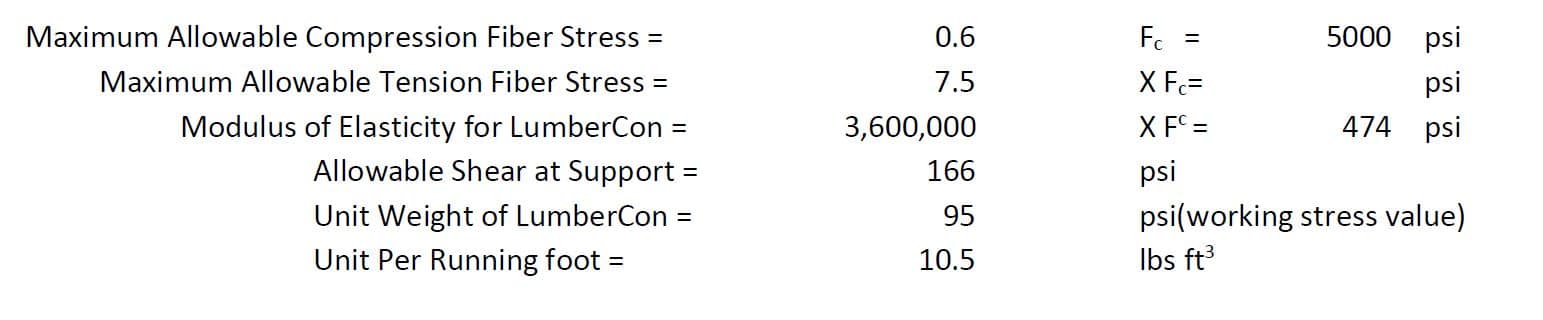

Stress Test Metrics
CAPACITY SPAN OF LUMBERCON PLANKS IN POUNDS PER LINEAL FOOT
| # of wires | 2 | 3 | 2 | 3 | 3 | 2 |
|---|---|---|---|---|---|---|
| Span Feet | 5/4 x 8 | 5/4 x 12 | 2 x 8 | 2 x 12 | 3 x 12 | 4x8 |
| 1.33 (16") | 820 | 1230 | x | x | x | 3000 |
| 2 | x | x | 1315 | 1400 | 2500 | |
| 2.66 (32") | 410 | 615 | x | x | x | 2015 |
| 3 | x | x | 575 | 1120 | 2400 | |
| 4 | 275 | 410 | 320 | 600 | 1300 | 750 |
| 5 | 205 | 310 | 195 | 400 | 870 | 504 |
| 6 | x | x | 135 | 280 | 600 | |
| 7 | x | x | 95 | 200 | 440 | <325 |
| 8 | x | x | x | 150 | 340 | 225 |
| 9 | x | x | x | 124 | 260 | >110 |
| 10 | x | x | x | 100 | 210 | x |
| 11 | x | x | x | x | 175 | x |
| 12 | x | x | x | 150 | x | |
| x | x | x | x | x | x | |
| Plank weight | 7.875 plf | 13.00 plf | 11.5 plf | 17.7 plf | 25 plf | 24.5 plf |
